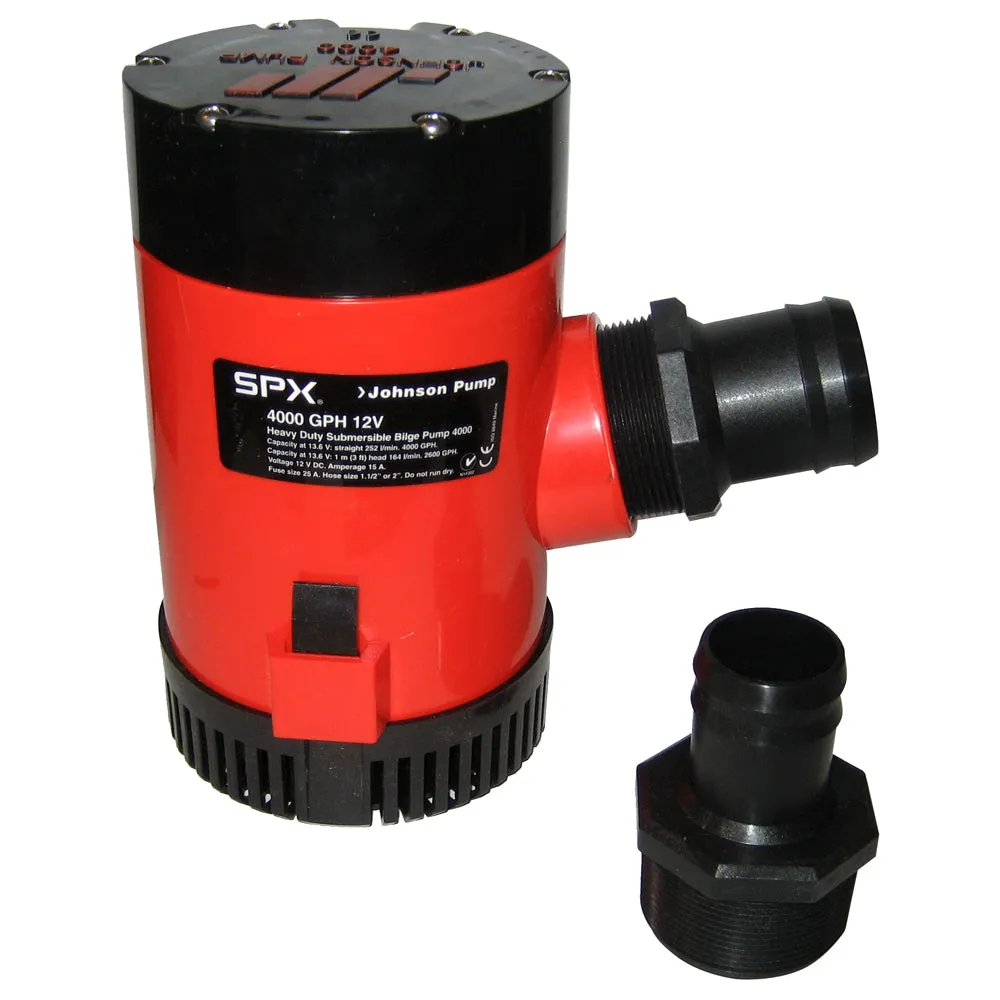

Heavy Duty Submersible Bilge Pumps in capacities of 1600, 2200 & 4000 GPH. Designed to meet and exceed the tough demands of commercial and recreational duty.
- Limited 1 Year Warranty
- Capacities of 1600, 2200, or 4000 GPH
- Liquid cooled, 12-pole motor with double ball bearings for extended service life
- Shaft of stainless steel (SS2343)
- 2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal
- Impeller is carefully designed and tested to maximize head and flow
- 4000 GPH features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design
- Universal base plate and choice of two different ports makes for a simple installation
- Removable check valve included
- Heavy Duty Submersible Pumps can be combined with either an electronic float switch or the Ultima Switch for automatic operation
| Description | Capacity 1.0 m head (13.6V/27.2V) | Capacity straight (13.6V/27.2V) | Voltage | Amp | Fuse Size |
| Heavy Duty Bilge Pump1600 GPH, 12V | 98 l/min – 1550 GPH | 100 l/min – 1600 GPH | 12 V | 7 A | 10 A |
| Heavy Duty Bilge Pump1600 GPH, 24V | 98 l/min – 1550 GPH | 100 l/min – 1600 GPH | 24 V | 3.5 A | 6 A |
| Heavy Duty Bilge Pump 2200 GPH, 12V | 120 l/min – 1900 GPH | 130 l/min – 2060 GPH | 12 V | 7.5 A | 12 A |
| Heavy Duty Bilge Pump 4000 GPH, 12V | 164 l/min – 2600 GPH | 252 l/min – 4000 GPH | 12 V | 15 A | 25 A |
| Heavy Duty Bilge Pump 4000 GPH, 24V | 164 l/min – 2600 GPH | 252 l/min – 4000 GPH | 24 V | 7.5 A | 15 A |
